Features:

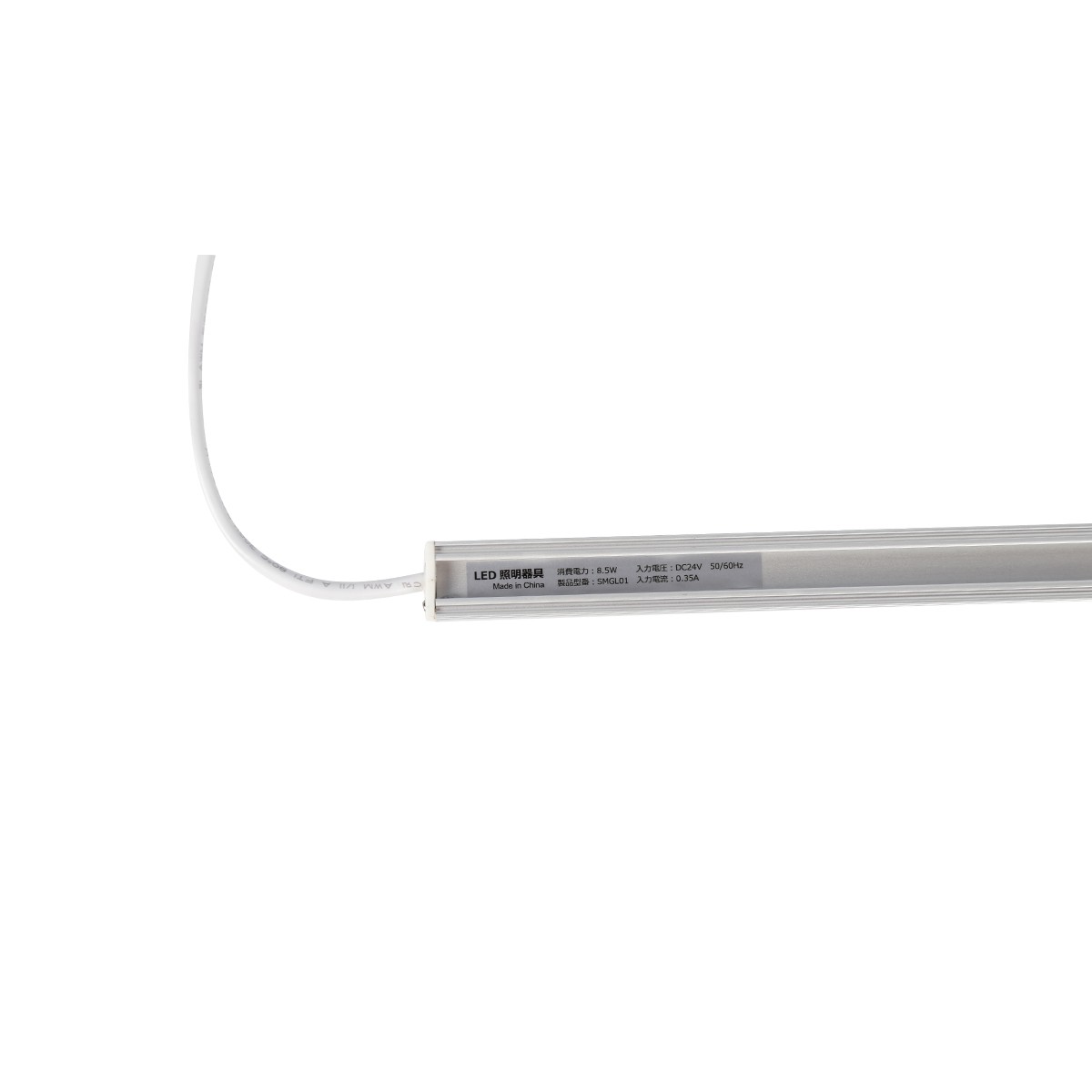

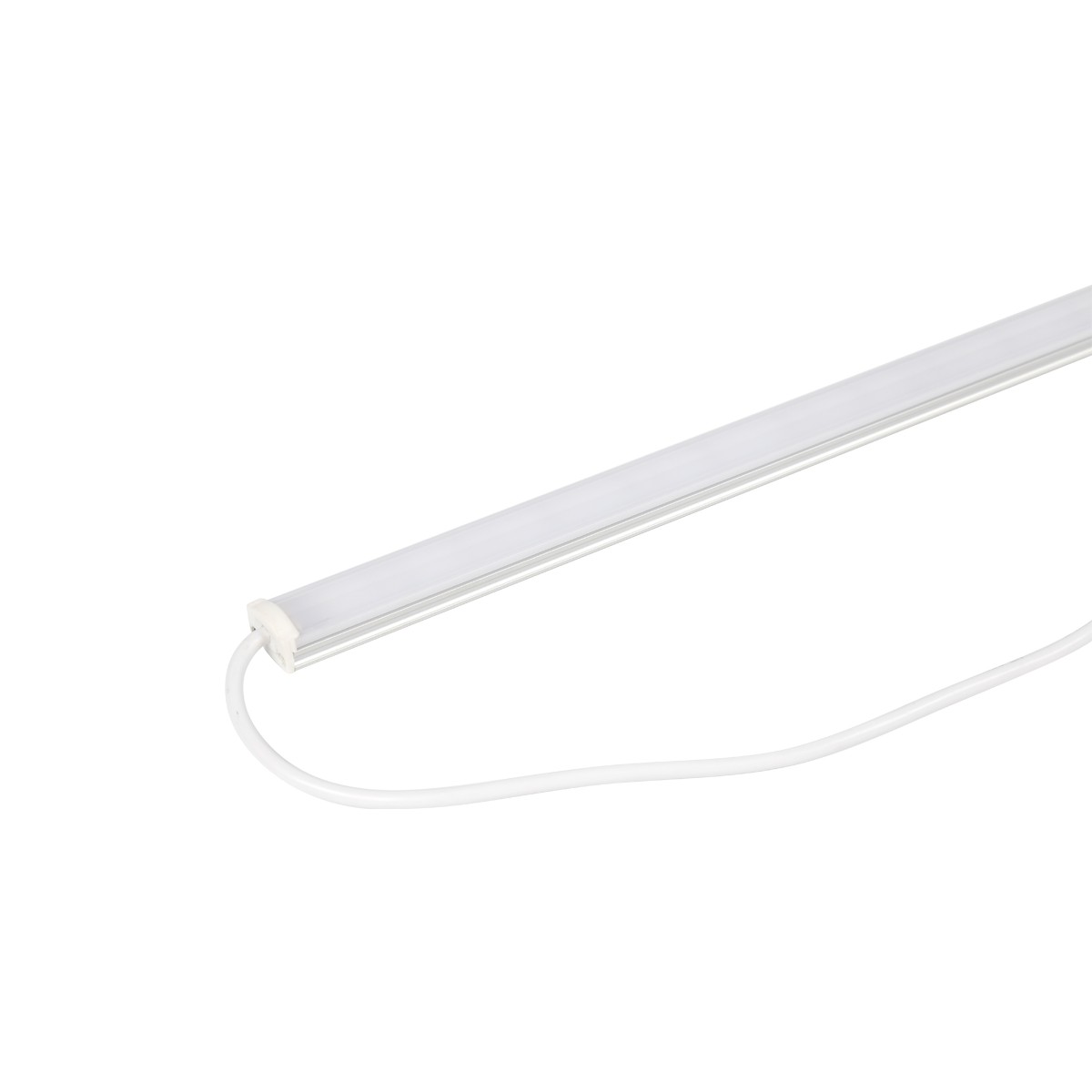

Shelf LED light bar, 2835 Epistar imported chip lamp beads, light
Good effect, high brightness, long service life; strip at the bottom of the light bar

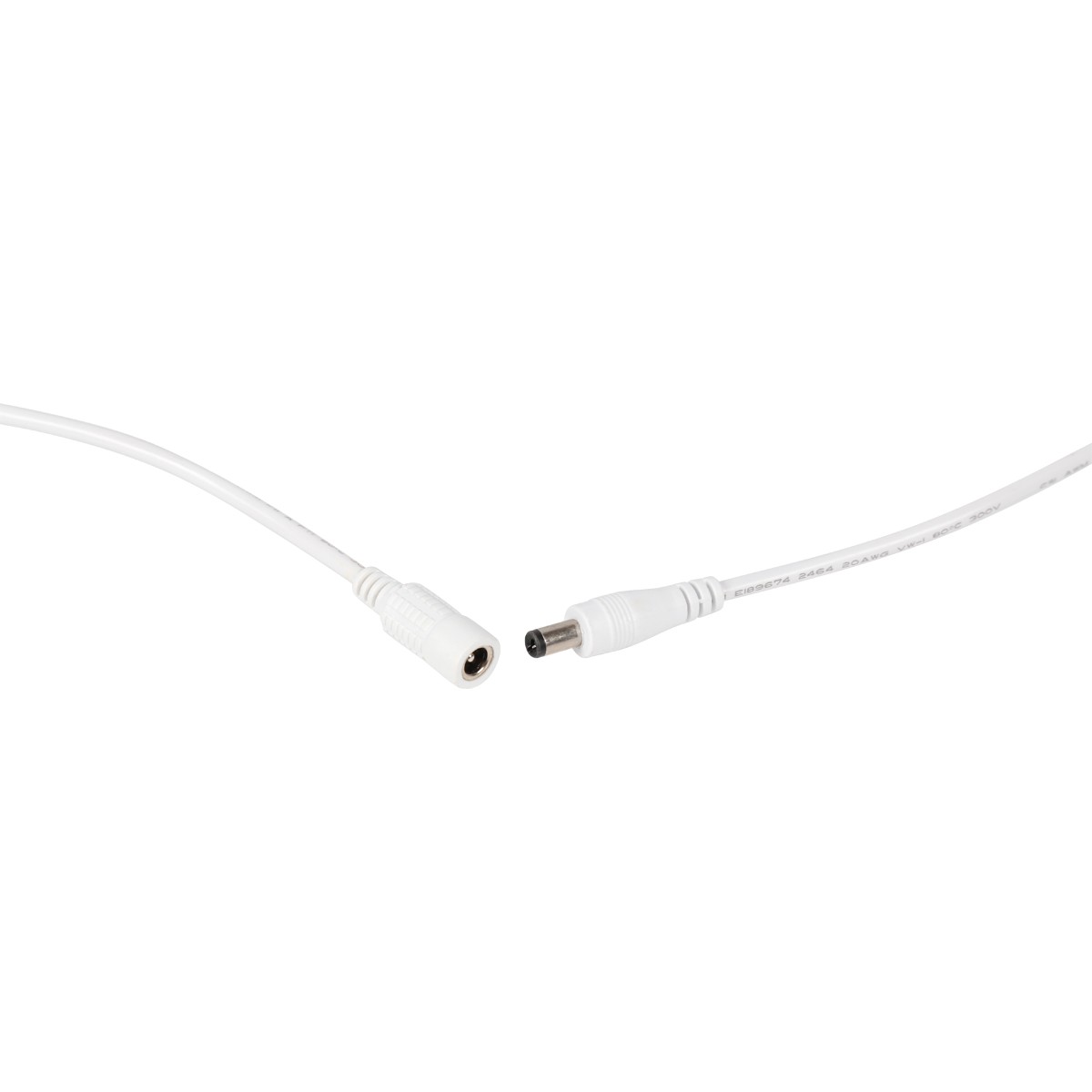

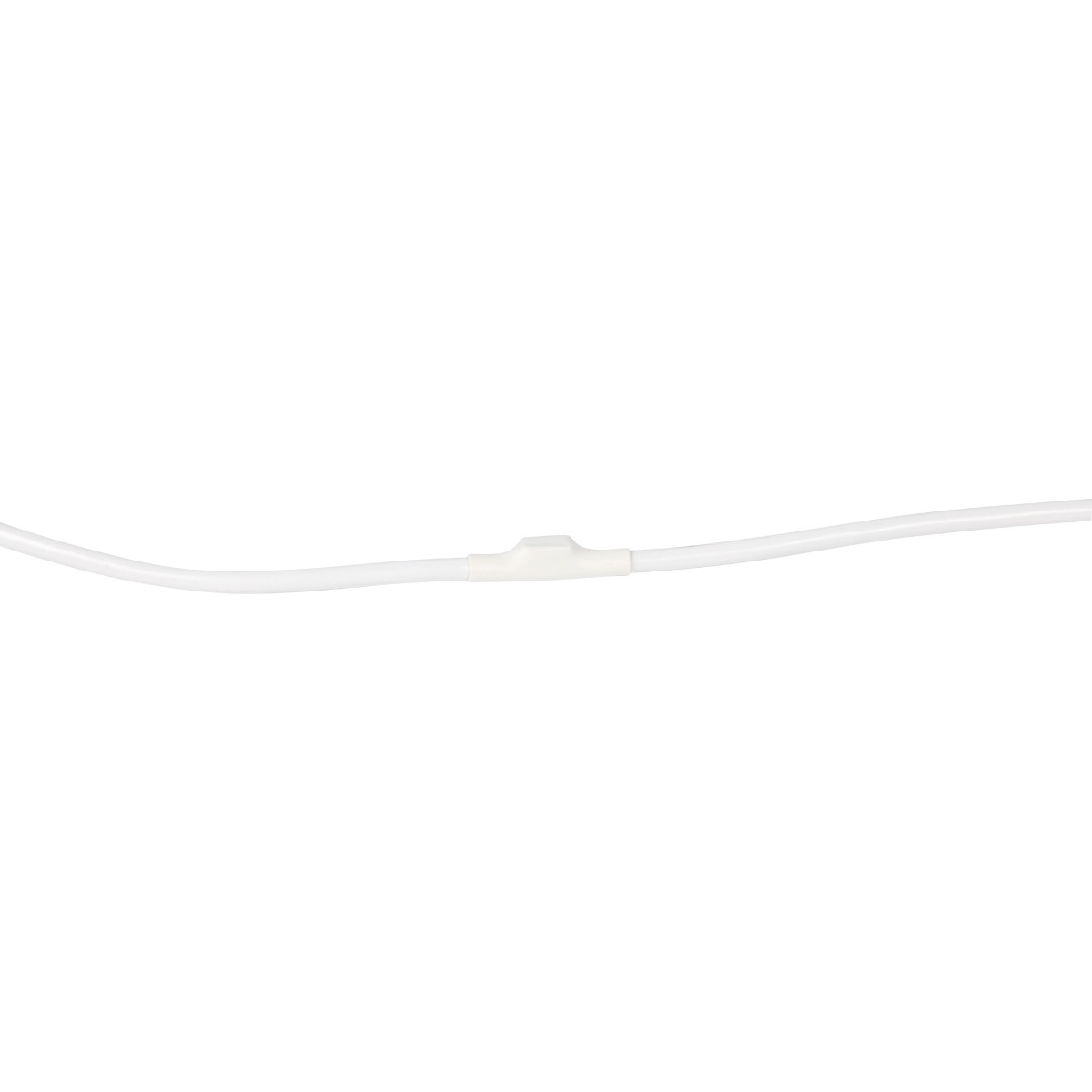

Magnets are easy to install; both ends of the light bar are wired out, and the wire is specially made to wire, which can weld the wire firmly, and the solder joints are not easy to fall off. The wire is also equipped with a magnet, which is more advantageous and convenient for installation.
| Date | 2021-7-31 |
| quantity | 102 beads |
| Lamp name | LED hard bar light |
| Specification model | qmd-udt-2835-102d-1709-w-24v |
| Lamp brand | Qimingda |
| Application location | Customer's choice |
| Installation method | Magnetic installation |
light source | |
| Light effect | 100LM/W |
| Color temperature | 2700-6500K optional |
| Power source | 0.2W |
| Light source brand | Epistar |
| Light source type/specification | SMD2835 |
Lamps and electrical appliances | |
| Protection level | IP33 |
| Input voltage | DC24V |
| Power factor | 90 |
| Hole Size | 850*17*9MM |
| Control and others | Manual control |
| Beam angle/lens | 120 degrees |
| Shade material/color | Milky white/transparent PC cover optional |
| Light body material/color | Silver aluminum alloy |
| Power (number of light sources x light source power) | 50000h |
| Lamp life (system is not a single light source) | 50000h |
