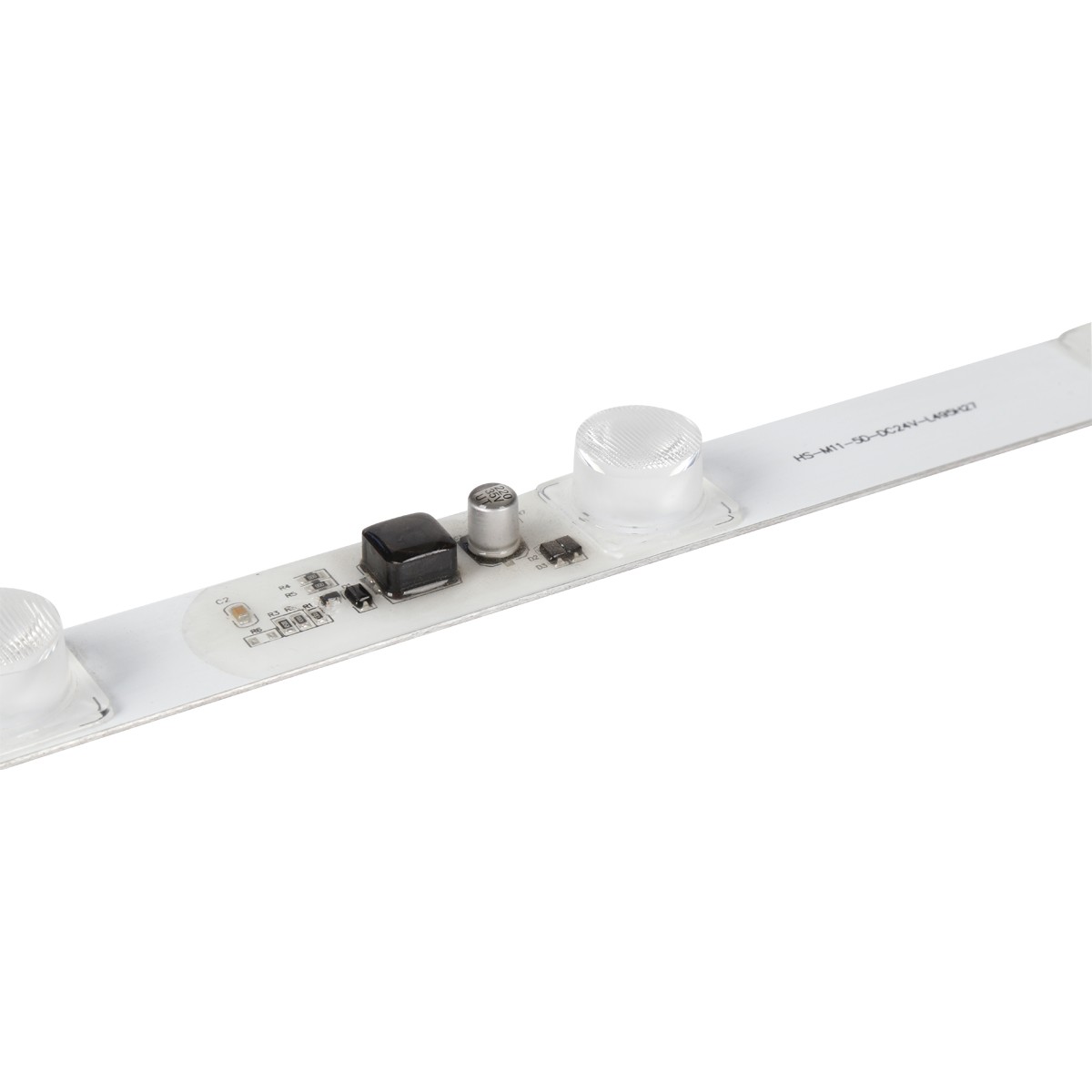

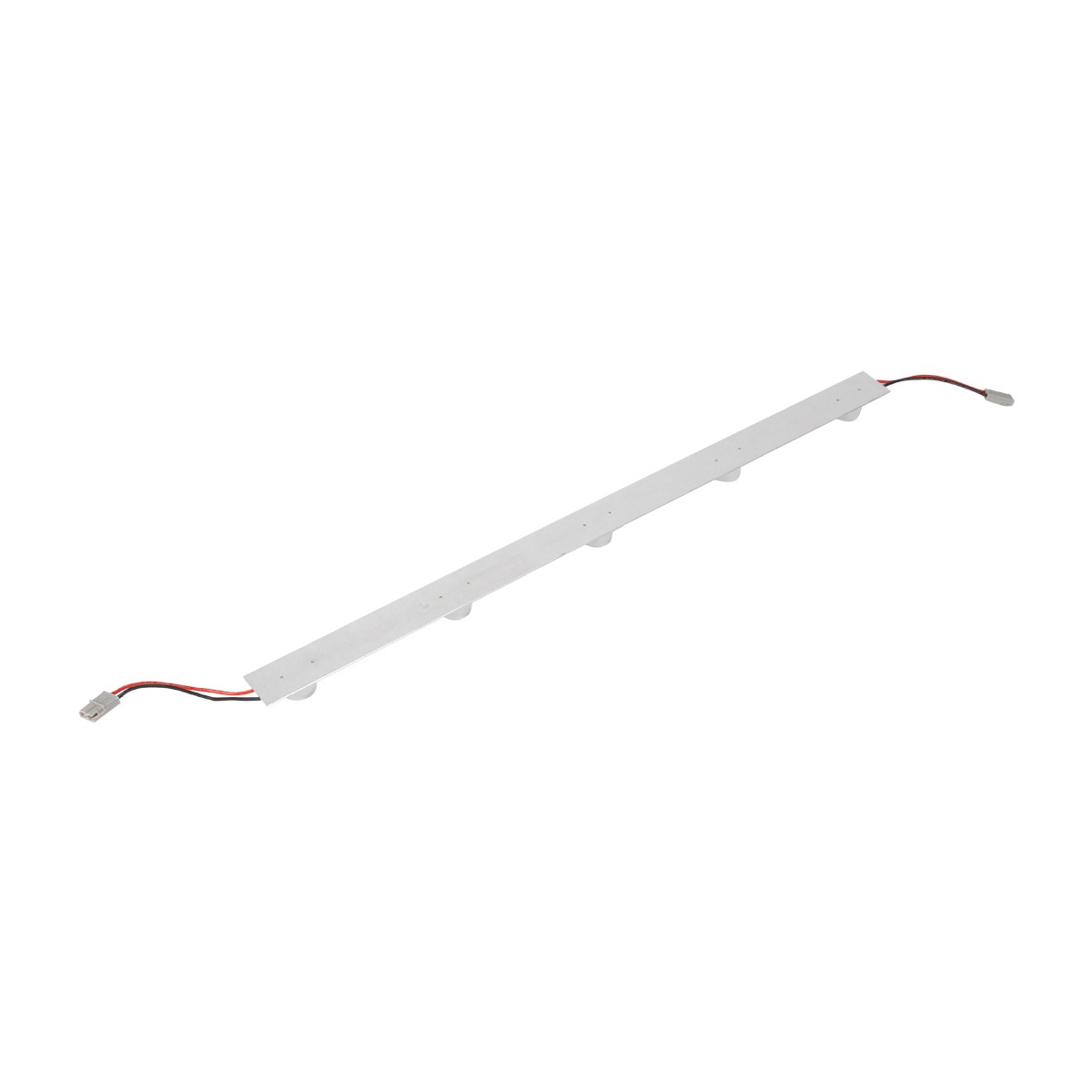

High-power side-emitting light box LED rigid light bar 3535 with perspective mirror LED light bar
High-power side-emitting light box LED rigid light bar 3535 with perspective mirror LED light bar
High-power side-emitting light box LED rigid light bar 3535 with perspective mirror LED light bar

High-power side-emitting light box LED rigid light bar 3535 with perspective mirror LED light bar

Used in offices, hospitals, schools and other places to meet lighting needs and achieve decorative functions

Export quality
Professional design
Self-developed products
Worry-free after-sales

Features:

Side-emitting LED light box light bar, parts epoxy waterproof, waterproof grade IP43; CREE lamp bead patch, high-brightness chip, high brightness, energy-saving and power-saving; the lens light effect is restored with a large luminous angle, a long range distance, and a more uniform luminescence; Both ends of the light bar can be powered and can be connected continuously, and the terminals at both ends are line-to-head for easy installation.


Online consultation Buy it now

Product parameter

Date2021-7-31
Quantity5 lights
Lamp nameLED light box light bar
Specification modelqmd-dxdt-3535-5d-495-w-24v
Lamp brandQimingda
Application locationCustomer's choice
Installation methodLight box frame installation

light source

Light effect120-130LM/W
Color temperature
2700-6500K optional
Power source
3-5W
Light source brandCREE
Light source type/specification
SMD3535

Lamps and electrical appliances

Protection level
IP43
Input voltageDC24V
Power factor
90
Hole Size
495*27*2.0MM
Beam angle/lens60 degrees/10*45 degrees
Shade material/color/
Light body material/colorPCB aluminum substrate
Power (number of light sources x light source power)15W
Lamp life (system is not a single light source)50000h



Application scenario
